Yardney-Filtaworx Screen Filter
Yardney Filtaworx automatic self-cleaning screen filters provide excellent protection for all types of irrigation systems including drip, micro-spray, sprinklers and golf course systems. Filtaworx screen filters are one of the most technically innovative self-cleaning filters available combining proven high performance, reliability and economy in a compact robust design.
Applications
- Removal of algae, slime or other organic contaminant as well as sand, grit and other inorganic contaminants with fine mesh filtration down to 250 mesh or 50 microns
- 150 psi standard operating pressure (high pressure systems available)
- Flow ranges from 110 gpm
- Irrigation and turf applications including drip, micro-spray and sprinklers
Advantages
- Heavy duty stainless steel filter body provides corrosion resistance in most environments
- Durable low maintenance automatic self-cleaning mechanism
- Wide range of fine screen sizes from 50–800 microns (250-20 mesh)
- Hydraulically or electrically controlled internal cleaning mechanism
- Automatic operation of the self-cleaning backflush cycle is achieved when a pre-set pressure drop (5–7 psi) across the filter is reached
- Sectional screens allow easy replacement of a section of screen versus entire cartridge if damage occurs to the screen
- Minimal moving parts, simple design and robust construction
- Compact and simple installation can be mounted in any position or orientation, with minimal space requirements
- Sacrificial anode (most models)
Standard Assembly Includes
- 304 stainless steel body with flanged inlet and outlet

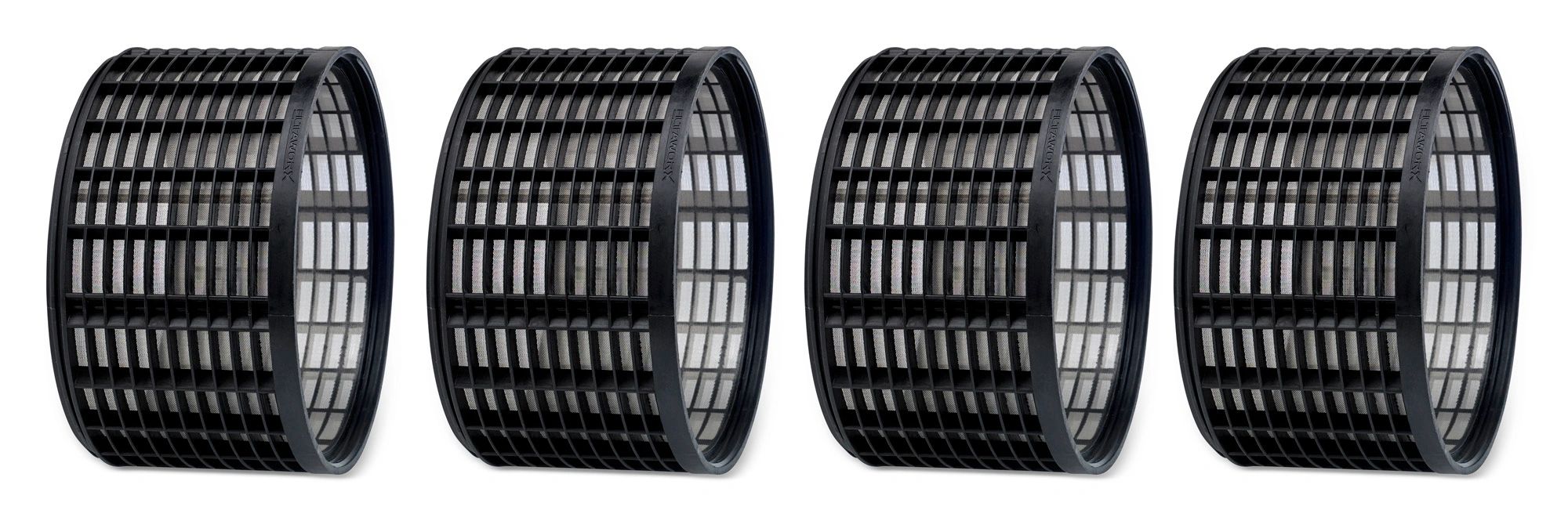

- Glass reinforced nylon screen element accompanied with 316 Stainless steel mesh (shown above)
- NBR and EPDM seals
- Hydraulic controller
- Sacrificial anode (most models)
Available Options
- 316 stainless steel housing available on request
- High pressure
- Electric controller
- Pressure sustaining valve (highly recommended)
- Four layered sintered Screen (shown on left)
