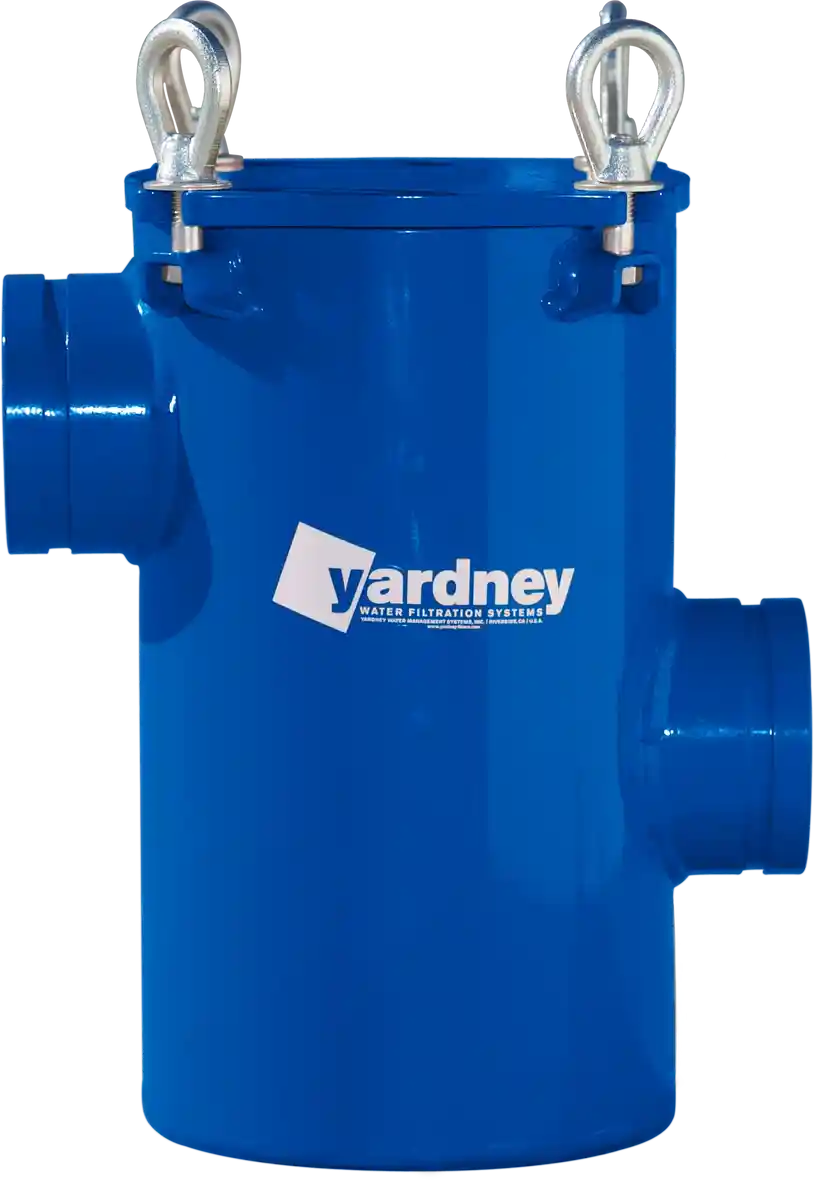

Basket Strainer Screen Filter
Yardney Basket Strainers are a low cost filter solution designed to be used for the removal of inorganic contaminants. Basket strainers trap gross contaminants and are able to withstand a substantial amount of loading without failure. When used as a secondary filter the basket strainer is intended to capture contaminants that may enter the system as a result of a pipeline break or system malfunction.
Applications
- Removal of sand, rock, grit and other inorganic contaminants to protect drip and micro-irrigation systems with fine mesh filtration down to 200 mesh or 75 microns
- 80 psi standard operating pressure (high pressure systems available)
- Flow ranges from 110 gpm
- Can be used as a primary filter in specific applications
- Can be used as a secondary filter to a sand media filter, centrifugal separator or other primary filtration system
Advantages
- Rugged, field changeable, washable and replaceable polypropylene filter sock available in 40, 80, 100, 150 and 200 mesh
- Easy-entry lid closure
- Available in welded carbon steel
- 3M Scotchkote® 134 fusion bonded epoxy coating on interior surfaces
- Exterior of housing is coated with UV stabilized polyester powder coat for longer product life and greater protection from the environment
- Made in USA
Standard Assembly Includes
- Carbon steel housing
- 3M Scotchkote® 134 fusion bonded epoxy coating on interior surfaces
- Polyester powder coating on exterior surfaces

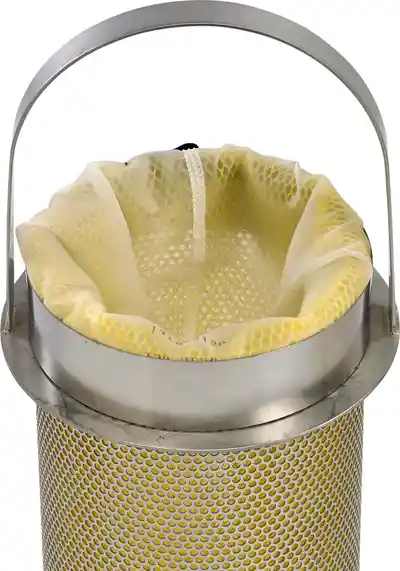

- Internal stainless steel basket with field replaceable filter mesh
- 3-way ball valve
- Pressure gauge
- Tubing with fittings
- Drain ball valve
Available Options
- ASME code
- High pressure
- Grooved or flanged mainline connections
- Available in purple for reclaimed water applications
