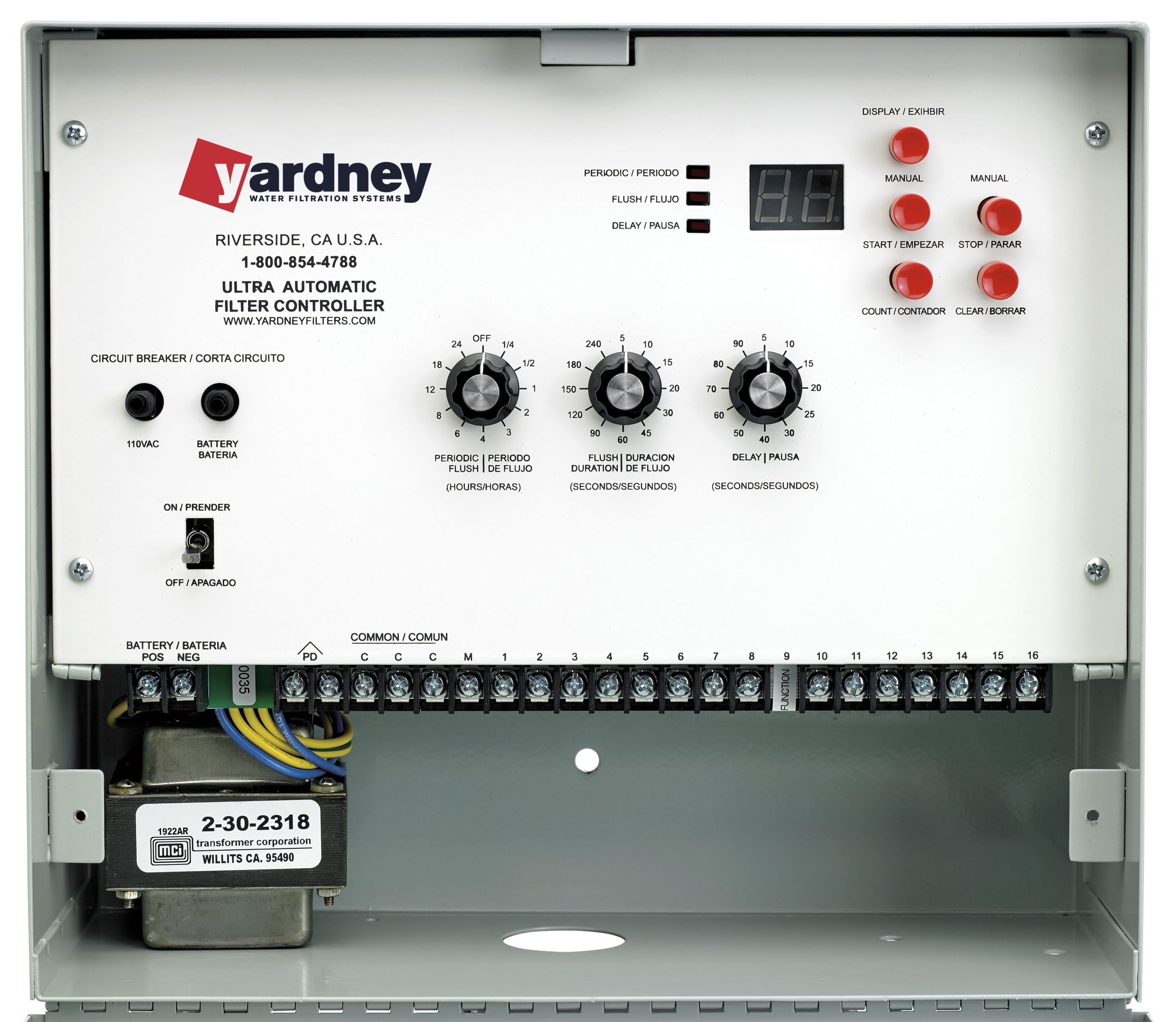

Ultra Backwash Controller

Yardney Ultra Automatic Controllers are simple and easy to use. The filter control system design features user selection flexibility of power source input (12V DC, 120V AC, 220V AC), output power type and number of stations up to a maximum of 16 stations per controller. The controller incorporates elapsed time monitoring as well as pressure differential activation with filter system backwashing activity reported through the backwash cycle counter program.

Applications

Available for use with all Yardney automatic filtration systems

Advantages

Four-station base unit is expandable to sixteen stations using 4-station plug-in expansion modules
Operates up to 2 valves per station plus a master valve
Input power: 12VDC, 110 VAC or optional 220 VAC transformer
Flush activation based on elapsed time and/or pressure differential
Controls are in English and Spanish
Programmable filter backwash frequency, duration and delay
Backwash cycle counter
Manual start with station advance and stop
Lockable rain-tight outdoor enclosure
Three year limited warranty
