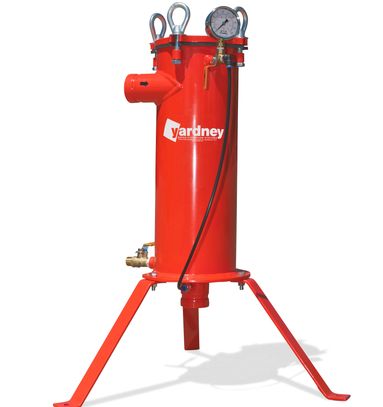

Spin Flow Screen Filters

Spin Flow screen filters offer the benefits of a vortex action spin flow with the advantages of a woven mesh screen filter. Water enters the screen housing tangentially, vortexing the flow—a technique that separates heavy particulate away from the fine mesh cartridge. This method of separation simplifies and reduces cartridge cleaning. Heavy sediment is flushed from the filter through a conveniently located flush port, while the finer contaminant is trapped on the fine screen cartridge.

Applications

Removal of sand, rock, grit and other inorganic contaminants to protect drip and micro-irrigation systems with fine mesh filtration down to 200 mesh or 75 microns
120 psi standard operating pressure (high pressure systems available)
Flow ranges from 125 gpm and up
Can be used as a primary filter in specific applications
Can be used as a secondary filter to a sand media filter, centrifugal separator or other primary filtration system with the added benefit of an automatically controlled system

Advantages

Rugged, field changeable, washable and replaceable polypropylene filter sock available in 40, 80, 100, 150 and 200 mesh
Easy-entry lid closure
Available in welded carbon steel
3M Scotchkote® 134 fusion bonded epoxy coating on interior surfaces
Exterior of housing is coated with UV stabilized polyester powder coat for longer product life and protection from the environment
Made in USA

Standard Assembly Includes

Carbon steel housing
3M Scotchkote® 134 fusion bonded epoxy coating on interior surfaces
Polyester powder coating on exterior surfaces

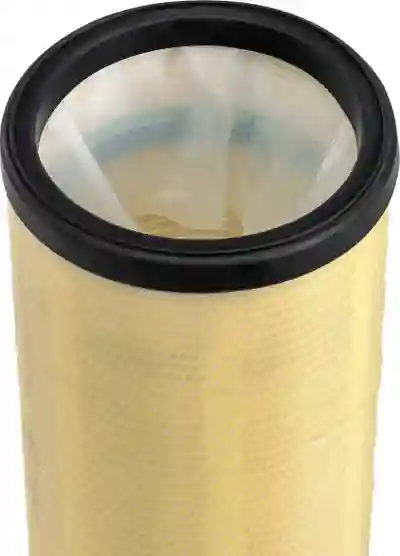

Internal cartridge element with field replaceable filter mesh
3-way ball valve
Pressure gauge
Tubing with fittings
Purge ball valve for manual flushing
Multiple housings include inlet and outlet manifolds and grooved couplings to connect all components together

Available Options

ASME code
High pressure
